3528 SMD LED dual-color red 620nm+860nm infrared light designed for aesthetic therapy,synergistic skin treatment and pain relief.
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | BOSMFC |
| Сертификация: | Rohs, Reach |
| Номер модели: | 3528 SMD LED RED+ IR |
Оплата и доставка Условия:
| Количество мин заказа: | 2000 шт |
|---|---|
| Упаковывая детали: | 2000pcs/катушка, катушка+антистатическая сумка+коробка |
| Время доставки: | 5-15 дней |
| Условия оплаты: | T/T, Western Union, PayPal |
| Поставка способности: | 500K/месяц |
|
Подробная информация |
|||
| Власть: | 0,5 Вт | Излучающий цвет: | Инфракрасный светодиодный свет |
|---|---|---|---|
| Длина волны: | 620/850NM | Вперед: | 20 мА |
| Впередное напряжение: | 1,8-2,4 В/1,3-1,7 В. | Угол просмотра: | 120 ° |
| Размер: | 3,5*2,8*1,5 мм | Рабочая температура (℃): | -40 - +85 |
| Температура хранения (℃): | -40 - +100 | Продолжительность жизни: | 50 000 часов |
| Гарантия: | 3 года | Чип бренд: | San'an Chip / Epistar Chip |
| Упаковка: | 2000pcs/катушка | ||
Характер продукции
3528 SMD LED dual-color red 620nm+860nm infrared light designed for aesthetic therapy,synergistic skin treatment and pain relief.

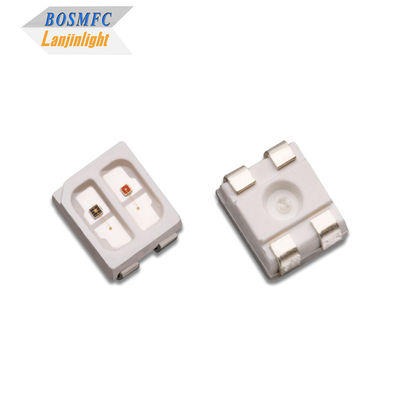

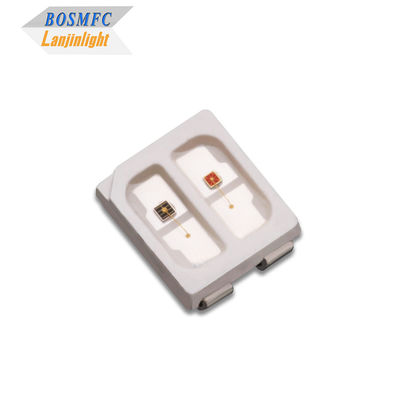

This custom 3528 SMD LED integrates dual wavelengths—620nm red light and 860nm infrared—into a single compact source. Designed specifically for aesthetic therapy, the red light rejuvenates skin and reduces inflammation, while the deeper-penetrating infrared relieves muscle and joint pain. Their synergistic effect enhances treatment outcomes for professional and home-use skincare and pain relief devices, delivering targeted, effective phototherapy.
Features:
- 99.99% gold wire bonding
- Long life span 50,000 hours
- Good heat dissipation
- Instant light(less than 100ns)
- RoHS and Reach certification
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Luminous intensity | Iv | 620nm
850nm |
--- |
3 7 |
--- | LM
mW |
IF=20mA |
| Dominant wavelength | 620nm
850nm |
620 840 |
--- |
630 860 |
nm | IF=20mA | |
| Forward voltage | VF | 620nm
850nm |
2.0 1.4
|
--- |
2.4 1.8 |
V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 3.5*2.8*1.5mm |
| Storage Temperature | －40~+100℃ | Packing | 2000pcs/reel |
Applications:
1. Facial Rejuvenation: Stimulates collagen to reduce wrinkles.
2. Acne Reduction: Blue light targets bacteria.
3. Pain Relief: Infrared soothes muscles and joints.
4. Skin Healing: Accelerates tissue repair.
5. Anti-Inflammation: Reduces swelling and redness.
Materials:
